Best Practices for Optimizing Your Autodesk Inventor & Vault BOM Structure


In manufacturing and product development, the accuracy and reliability of the Bill of Materials (BOM) are crucial for optimizing production processes. Autodesk Inventor and Vault offer powerful tools to streamline BOM management, helping to avoid common issues like production delays, cost overruns, and manufacturing errors due to poor BOM data quality. This article explores how integrating Autodesk Inventor and Vault enhances BOM management, improves manufacturing outcomes, and flawlessly connects with COOLORANGE POWERGATE for efficient ERP integration.


Enhancing BOM Quality with Autodesk Inventor

Autodesk Inventor brings precision and clarity to the initial stages of BOM creation through several key features:

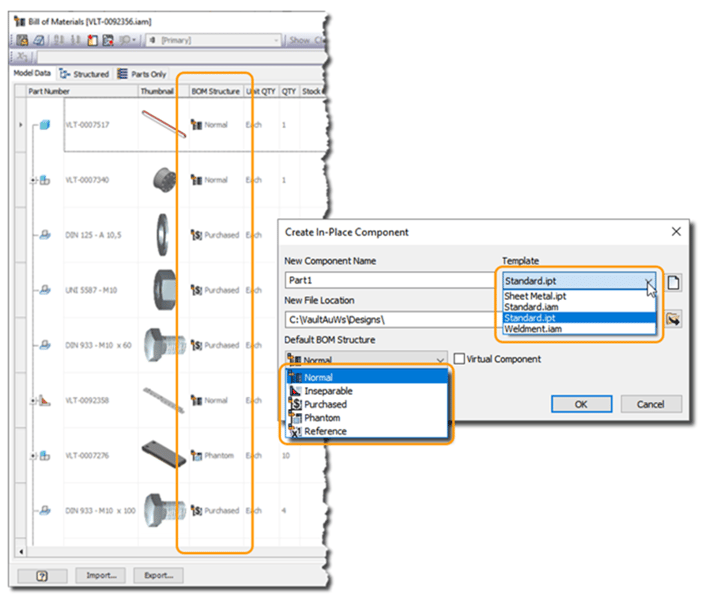

1. Specialized Templates: Inventor offers templates for various manufacturing processes like Sheet Metal and Welding, ensuring accurate component categorization from the start. This predefined categorization streamlines management and identification throughout the product lifecycle, preventing miscommunication and errors during manufacturing.
2. Sub-Type Properties: By defining Sub-Type properties for parts at the design stage, Inventor helps ensure that each component is appropriately classified according to its manufacturing requirements. This feature is crucial for later stages of the BOM process, where precise filtering and grouping in reports or databases are needed. Proper use of Sub-Type properties ensures that parts are handled correctly in subsequent operations, avoiding costly mistakes and rework


3. BOM Row Types: Inventor allows designers to specify whether parts are purchased, phantom, or inseparable within the BOM. This distinction is vital for accurate procurement and inventory management, directly affecting how materials are ordered and utilized in production. Correctly using this feature prevents inventory discrepancies and procurement issues, which are common sources of delays and budget overruns.

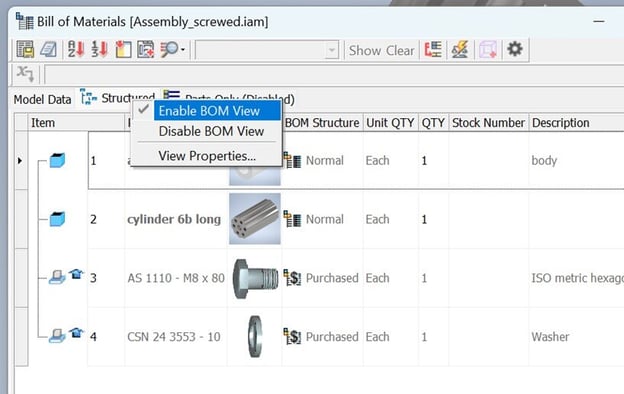

4. BOM Structure Activation: This feature in Inventor generates critical data such as position numbers, which are essential when transferring BOMs to ERP systems. It also allows for the application of concepts like phantom or purchased components, enhancing the accuracy and usability of the BOM in downstream processes.


Learn how COOLORANGE can enhance the way you handle your BOM data

Streamlining BOM Management with Autodesk Vault

Complementing Inventor, Autodesk Vault offers capabilities that ensure BOMs are managed effectively across different departments and systems:

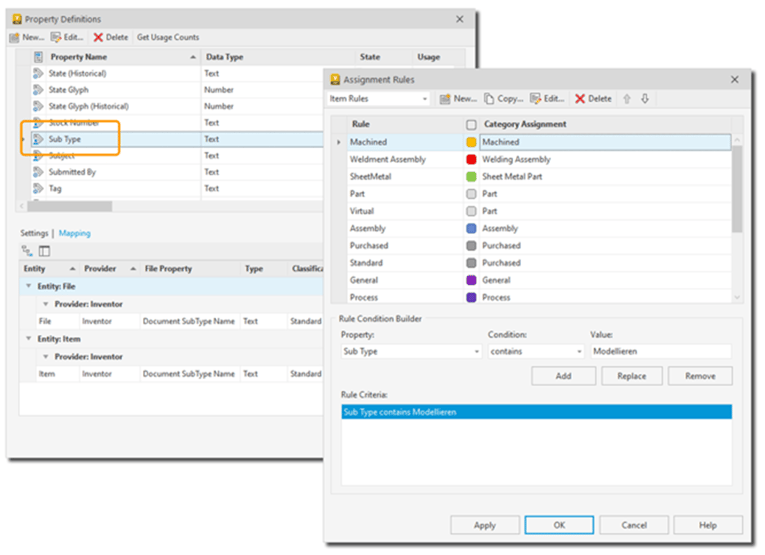

1. Automated Rule Application: Vault can automatically apply categories and rules to parts based on Sub-Type properties defined in Inventor. This automation helps in maintaining consistency across the BOM by ensuring that parts are always categorized correctly, thus facilitating smoother transitions and fewer errors in BOM management.
2. Handling Language Dependencies: The language-dependent nature of Sub-Type properties in Vault necessitates the creation of additional rules when dealing with Inventor files in different languages. Proper management of these properties is essential for maintaining the integrity of the BOM across multinational operations.
3. Enhanced ERP Integration: The structured and categorized BOMs managed in Vault can be seamlessly integrated with ERP systems. This integration is crucial for ensuring that the data in the ERP reflects the latest and most accurate BOM information, which is vital for planning and executing manufacturing operations efficiently. 3-1

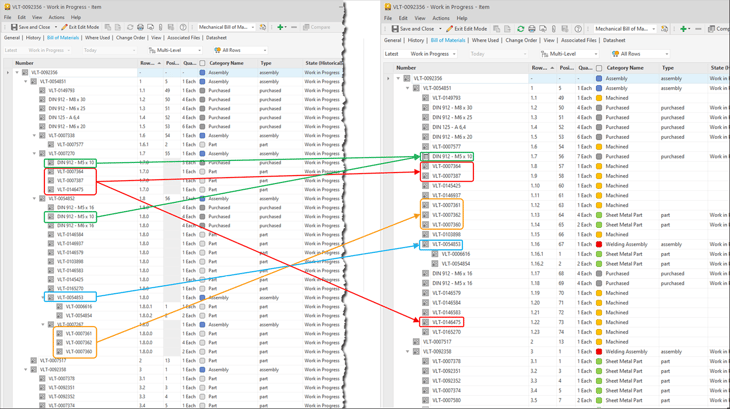

 The above picture shows you the difference between the same BOM generated from an Inventor assembly without using the Inventor features (left) and using the features (right).

Empower Your Manufacturing Potential

The robust features offered by Autodesk Inventor and Vault are indispensable for companies looking to enhance the quality and accuracy of their BOMs. Integrating these features with COOLORANGE POWERGATE magnifies their benefits, providing a seamless, automated flow of accurate BOM data into ERP systems. This integration supports streamlined operations, reduced waste, and enhanced product quality, aligning with the strategic goals of any forward-thinking manufacturing enterprise. Investing in these advanced tools and their integration not only improves operational efficiency but also equips manufacturers with the agility to respond effectively to market demands and production challenges.
